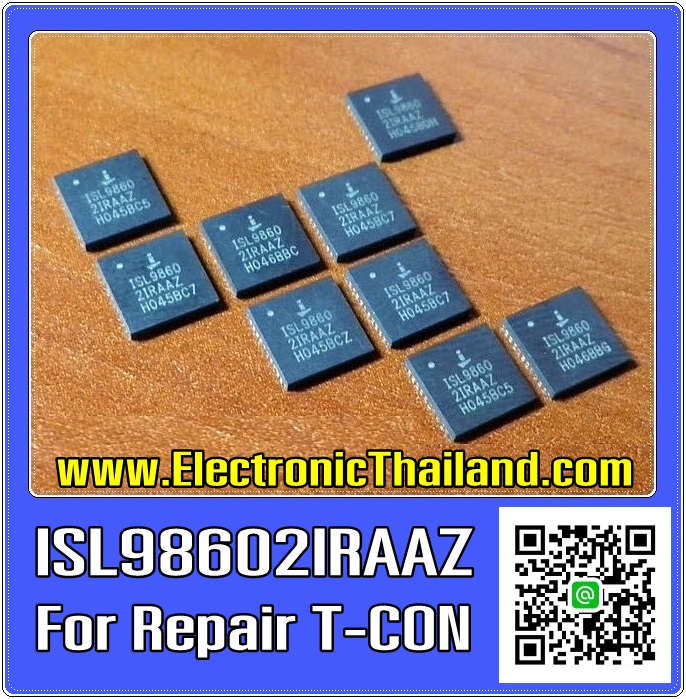

หมวดหมู่ | ไอซี IC. LCD LED PLASMA TV |
ราคาปกติ | |
ลดเหลือ | 70.00 บาท |
น้ำหนัก | 35 กรัม |
สภาพ | สินค้าใหม่ |
ลงสินค้า | 15 ต.ค. 2560 |
อัพเดทล่าสุด | 1 ก.ค. 2562 |
คงเหลือ | 0 ชิ้น |
สนใจสินค้า หรือต้องการซื้อสินค้า ลูกค้าสามารถติดต่อสอบถามรายละเอียดได้ผ่านหน้าเพจเฟสบุ๊ก หรือ in box หรือไลน์แอดทางร้านได้เลย ครับ

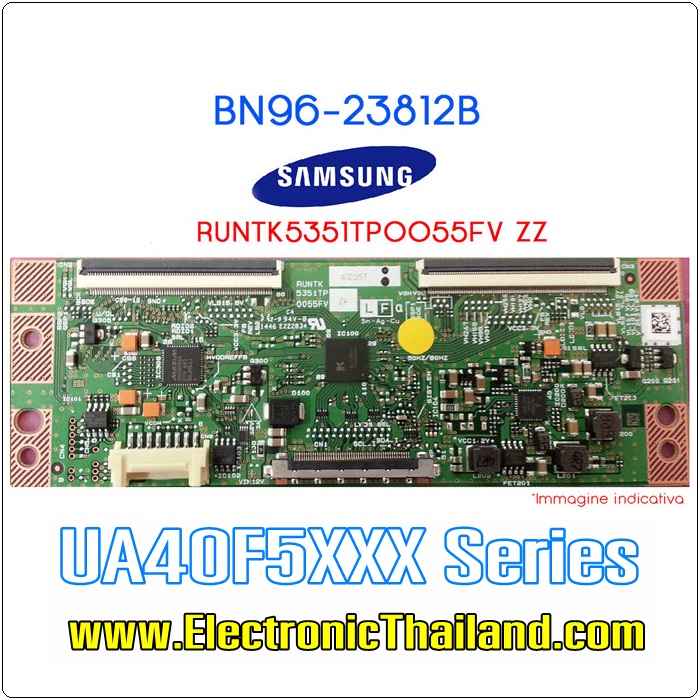

<<<ชมคลิปวิธีการซ่อมT-CON SAMSUNG ได้ที่นี่ >>>
Key Features
9.5V to 15.0V Input Supply
1.3MHz Switching Frequency
5.5A Integrated Boost for Up to 19V AVDD
VON Charge Pump, Up to 36V and 120mA
VOFF Charge Pump, Down to -10V and 120mA
Synchronous Buck1 for 3.3V/2.5V with 2.0A Peak FET
Synchronous Buck2 Controller Output from 0.9V to 2.0V
On-board AVDD Delay Switch
VON Slice Function Integrated
Power Good Function for TCON Enable
Automatic Start-Up Sequencing
UVLO, UVP, OVP, OCP, and OTP Protection

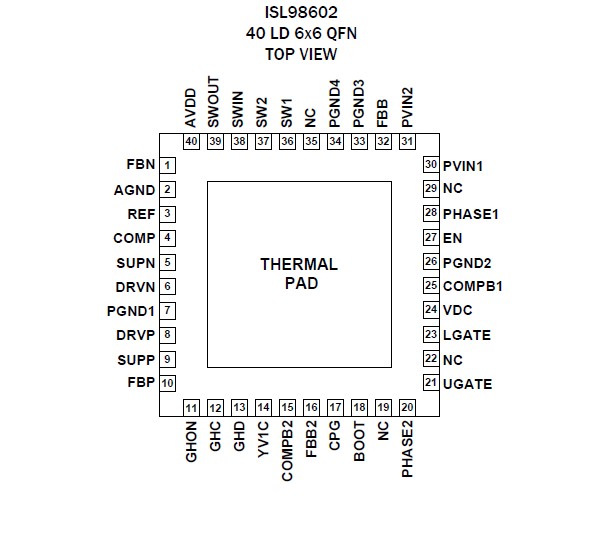

40 Ld 6x6 QFN
Specified for Ambient Operation Over the -40°C to +85°C Temperature Range
Pb- Free (RoHS Compliant)
Description

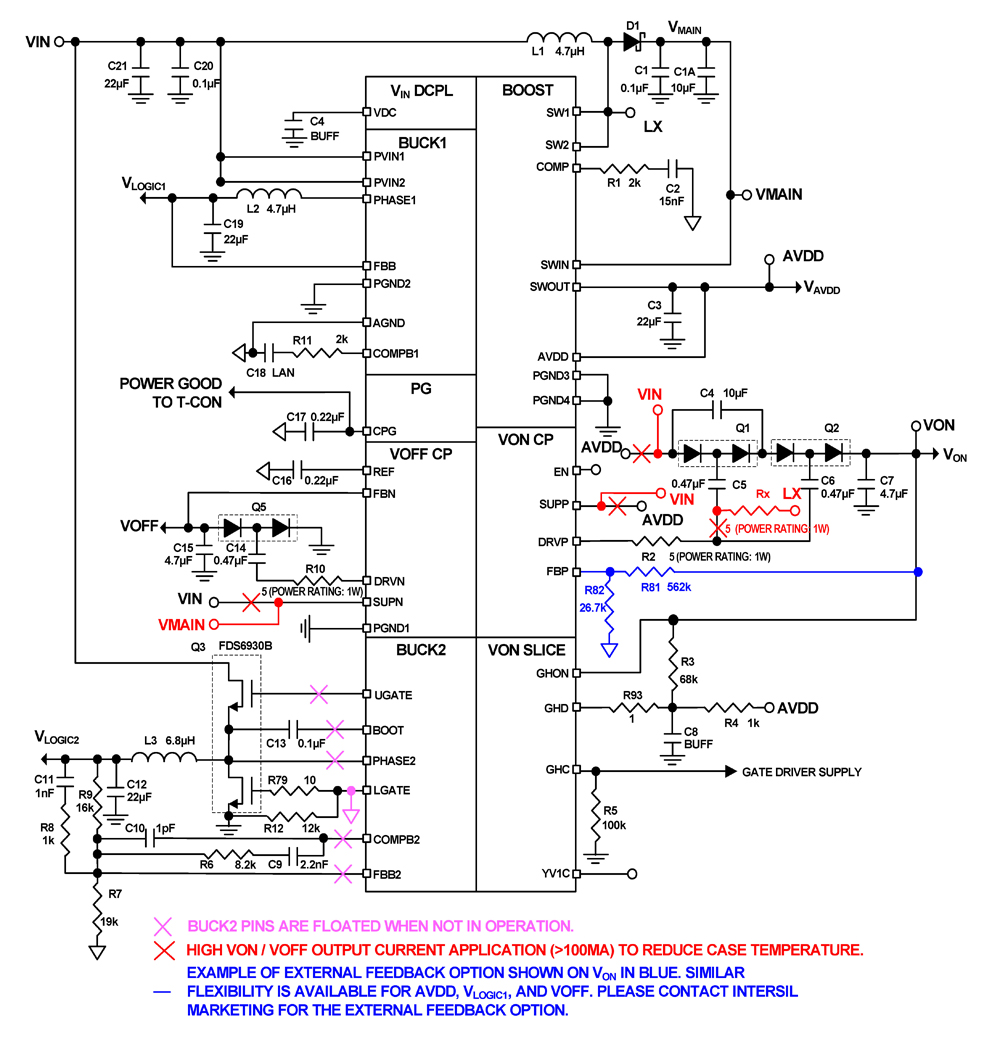

The ISL98602 represents a high-power, integrated LCD supply IC targeted at large panel LCD displays. The ISL98602 integrates a high-power boost converter for AVDD generation, VON and VOFF charge pump drivers, one synchronous buck regulator, and one synchronous buck controller for two logic voltages. The VON slicing circuitry and power good function are also included.
Operating at 1.3MHz, the AVDD boost converter features a 5.5A boost FET. Feedback is taken from the far side of the delay FET for improving regulation. The OVP circuit protects output side components.
The logic synchronous buck converter features two 2.3A FETs operating at 1.3MHz internal clock. The output voltage is set by the IC internally or with a feedback resistor. The soft-start circuitry is also integrated with the buck.
The second logic voltage is generated from a synchronous buck converter with MOSFET controllers. The overcurrent protection is also integrated with the buck.
The charge pump of VON and VOFF uses the full switching frequency and integrates the driver for high current capability. VON is further processed through an integrated VON slice circuit in order to reduce flicker.
Alternative fixed voltages at the boost, Buck1, Buck2, VON charge pump, and VOFF charge pump are available in ISL98602.
Applications
LED TV
